70cc EDC Pump Kit
70cc Pump.

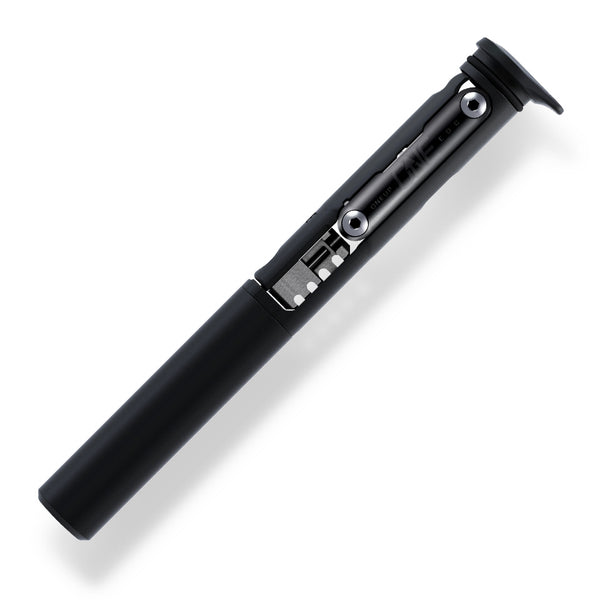

The 70cc EDC Pump is a compact, high-volume pump designed to carry our EDC Tool System and our Plug Kit. Its hollow design and CNC aluminum construction make it ultralight and durable.
Plug Kit.
The EDC Plug kit is the perfect addition to the 70cc EDC Pump system. Repair flats fast and be ready for anything with your 70cc EDC Pump Kit.
FAQ
Will the pump work with my Clik valves?
The pump has a standard Presta head, which does allow the pump to work with a Clik valve. However, based on rider feedback, we're aware that the pump can feel quite stiff during use.
I got the multi tool and pump, why does the tool rattle in the pump?
The multi tool is just one part of a whole. It is designed to be held captive within the EDC tool system. That complete tool can then be inserted into the pump and everything will be held nice, quiet and compact. Here is a link to the complete EDC tool system.
Do you sell replacement pump straps?
Yes! We have three packs of pump mount straps available in the EDC small parts section of the website.
Why is the tool hard to remove form my pump?
It is likely that the top O-ring is dry. Best thing to do is rub a small amount of grease onto the o-ring and re-install it. If that does not help, please email us at support@oneupcomponents.com.
What is the max the pump mount can be spaced from the bolt? WIll this fit my Wide down tube?
The pump mount has a max extension of 30mm from the center of the mounting bolts.
My pump handle is extending while riding, what can I do?
First make sure the handle seal is fully seated onto the handle. Then make sure you are running the pump with the pointed handle up. If it continue to extend, please email us at support@oneupcomponents.com and we can help!
Where is and how do I remove the CO2 inflator head from the pump?
The inflator head of the pump (the anodized green part) doubles as a CO2 inflator head, simply unthread it from the pump and you can thread your CO2 right onto it.
It can be quite snug from assembly, the first removal may require you use an 8mm hex key to unthread it.
Is this pump compatible with both Presta and Shraeder valves?
This pump is only compatible with Presta valves.
What is the max PSI for these pumps?
This pump is designed for MTB and gravel applications. It will happily get to 50-60PSI. Any pressure beyond that is not practical and we do not recommended this pump for high pressure road applications.
The pump doesn't seem to fit my valve, whats going on?
The pump head fits quite snugly on the valves when new. Be sure you give it a firm & straight push down onto the valve before inflating.
Reviews
Overall rating: 4.8436832 / 5 from 467 reviews.
AI Generated Review Summary
The 70cc EDC Pump is praised for its solid construction, high-quality materials, and excellent customer service. Customers appreciate its compact design, perfect fit, and the large volume it provides. The tool and kit included are also highly regarded for their functionality and ease of use.
Summary topics
- Construction Quality: 3%
- Customer Service: 4%
- Product Fit: 7%
- Tool Functionality: 17%
- Pump Performance: 45%
Review topics: ["fit","size","model","issues","straps","weight","quality","function","material","looks","design","post","feel","package","construction","works","finish","volume","air","support","pressure","recommend","metal","service","build","grip","pump","tool","kit","rides"].
Review highlights
- "Good quality, useful tool, cool design." —
- "High Quality Pump & Tool" —
- "Pump works really well and to have your multi tool stored away in it is awesome." —
Reviews
Quality Product, Well Built, Fantastic Customer Service.
"Quality Product, Well Built, Fantastic Customer Service."
Good pump but could use some improvements.
"I really like the pump overall. The good: - Lightweight and easy to mount - Optional inline mount or bottle cage mount options. I've used both. The bad: - The rubber presta valve plug that plugs into the actuator is so tight, it sometimes won't plug in (or stay in). The issue I have run into, is that this will explode the green pump inflator assembly to water and dirt. After a while, this will start to corrode the internal parts of the assembly and will prevent the assembly from allowing air to go through, rendering it useless. I've tried to soak it in WD40 to try to free it up, but ended up having to order a new assembly. - I've broken the bottle cage mount twice now, after a couple crashes. The issue is, the pump sticks out the side of the frame and makes is more susceptible to crashes. I recently switched to the in-line mount to see if that is a better solution. - The rubber strap breaks easily. I've broken 2. My friend broke 2 or 3, to the point he just gave up replacing them - Suggestion: It'd be cool if the pump inflator assembly came in optional colours."
The best! Super compact and
"The best! Super compact and very well made."
Buy it!
"Super light and IMO it's a gear you need to have while out riding. I added a CO2 cartridge in the storage compartment."
A great little tool/pump combination
"A great little tool/pump combination"
Just what I needed, it
"Just what I needed, it was shipped right away. That plus the quality of product is unmatched. Thanks!"
Great product
"Great product"
Clever engineering
"Well thought out innovation that will keep me prepared for any eventuality"
Best pump
"Best pump"
Q&A
- Can you make a Stan's Dart installation end for the pump? I have a bacon strip fork that broke and I ground it down to work. It's nice to be able to have both available. One that was purpose made would be much nicer.
- Hey Nick, Thanks for your message, I'm happy to help. We don't make that style as there's issues with using a different brands parts, however Jank Components makes an adaptor: https://jankcomponents.com/products/love-dart-edc-pump-stans-dart-add-on?srsltid=AfmBOoq7qlAxAv3oQfARq5X2xfW8d-9PFydsRwGq-L62mBDqlK5swZ5D I would suggest checking them out. Please let me know if there's anything else I can help you with. Cheers,
- Can you buy just the EDC multi tool? It says sold separately on the pump box
- Hi Wyman, Thanks for your message, I'm happy to help. You'll need to add the EDC V2 Tool to your order to get everything you need. You can also add the Plug Kit if you want. We also offer the 70CC Pump Bundle which gets you an extra discount on everything you need to get set up. Please let me know if there's anything else I can help you with. Cheers,
- the rubber restraint that ensures that the pump stays in its clip is broken. Where can I get replacement?
- Hi Bob, thanks for reaching out! Here is a link to those pump straps. https://www.oneupcomponents.com/products/edc-pump-strap-kit
- Hey there, do you have any timeline for when the 100cc EDC Pump Kit will be back in stock? Thanks!
- Hey Reed, we are expecting to get these back into stock in the next couple weeks. I'd suggest turning on stock notifications so you can be the first to hear when they come into stock.
- Is the 70cc EDC Pump and the CO2 head compatible with the Schwalde Clik Valve? I was looking for an EDC pump, but now I have the Clik Valve I was wandering if this is compatible or can I stash the Clik Valve head somewhere in the EDC set?
- Our pumps work with Schwalbe's Clik valves as they do with a normal presta valve, but aren't making full use of that new technology. I hope this helps!
