Aluminum Pedals

VITAL-MTB 4.5/5 Star Review - Read the full review here

“With a thin and wide design that provides plenty of grip and stability, the OneUp aluminum pedals offers great performance in a durable and easy to maintain package

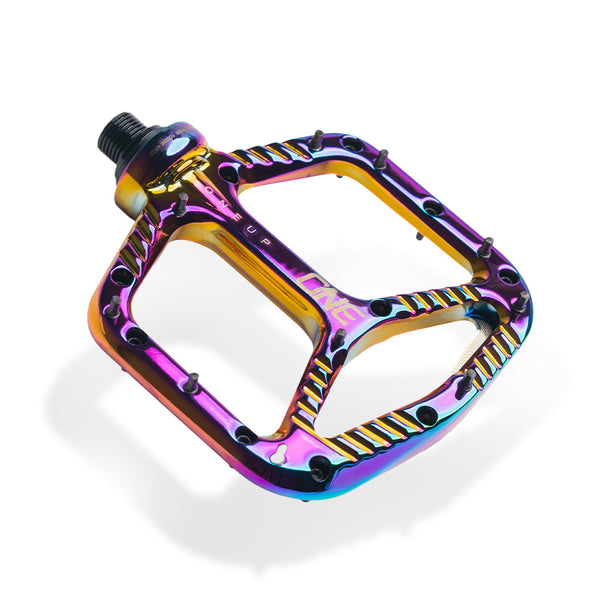

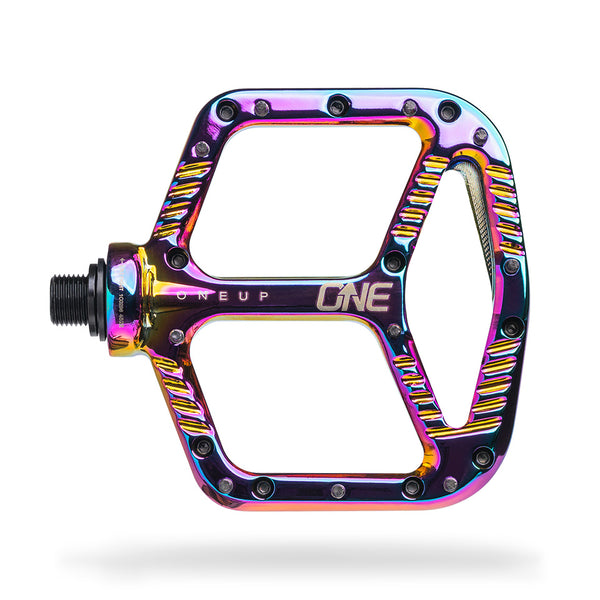

The OneUp Aluminum Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading hexagonal steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 355g, the OneUp Aluminum Pedals won't slow you down on the climbs.

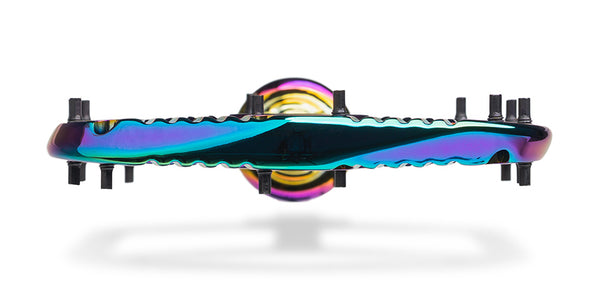

 Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedals sitting in the natural arch of your foot. The ultra-thin design (only 8mm at the leading edge) gives you maximum clearance to reduce pedal strikes and deflect off trail obstacle. Clip Less, Ride More.

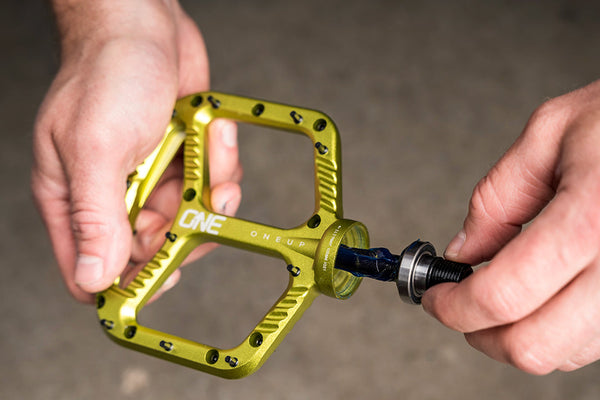

Each pedal contains 4 double sealed full cartridge bearing and no bushings, to eliminate axle play and provide ultimate long-term durability. When it s finally time to service your bearings, the unique cassette tool lock ring system makes re-greasing the bearings exceptionally fast and easy. Available in 3 colors, Black, Green and Grey.



FEATURES

  • 10 rear loading custom hexagonal removable pins per side for maximum grip
  • 4 sealed cartridge bearings per pedal
  • Ultra thin leading edge chamfered design to deflect off any obstacle
  • Fully sealed and serviceable design with built in bearing extractor
  • Wide platform design for increased stability
  • Contoured shape provides ultimate connected feel



SPECS

Weight: 355g
Platform Size: 115x105mm
# of Pins: 10 per side
Axle Material: Chromoly steel
Height: 8.3-12mm
Pin to Axle distance: 112mm
Color: Black, Green, Grey
Body Material: 6061-T6 Aluminum



INSTRUCTIONS

Ensure pedal washer and lip seal are assembled with flange side towards crank. In the following orientation. We recommend an additional pedal washer to be used with counterbored cranks in between our pedal and the crank.



Maintenance and Rebuild Procedure
